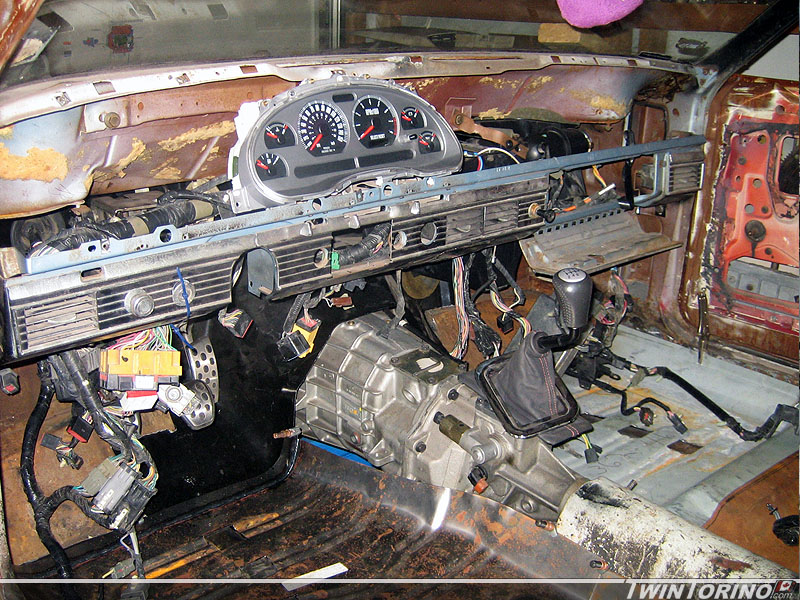

6/29/09 - We started to lay out all of the wiring in the car as that stage is quickly appreaching. There is a lot more room to put everything in here compared to the original Mustang that it came off of. The big challenge here is going to be making room for everything once the HVAC is installed and in position. The computer processor, fuse panels, and lots of other items that wer never on the original Torino need to find home too. The Mach 1 cluster and all the wiring connectors will stay until the car is started for the first time.. and then everything will go on a diet. Al the wiring and connectors that are not needed will be cut out. The parts that remain as original Torino parts (very few pieces like the steering column and various lights) will be spliced in also.

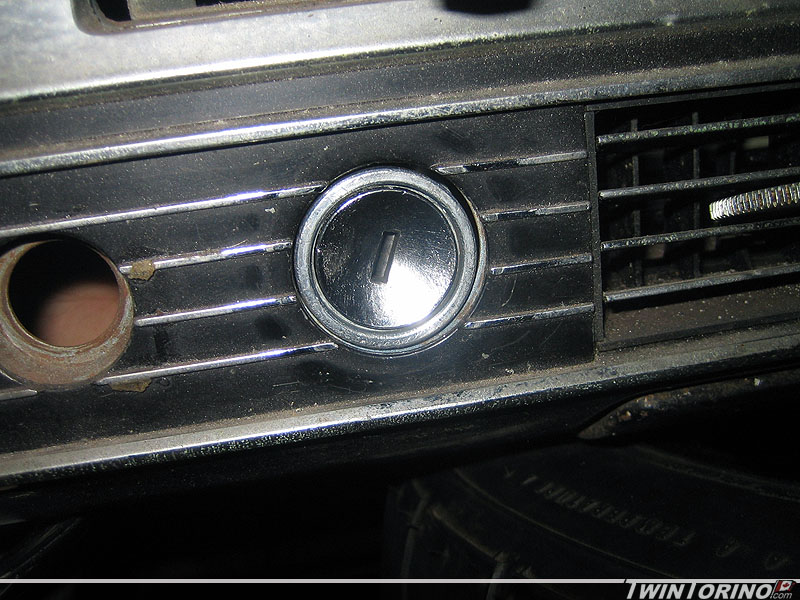

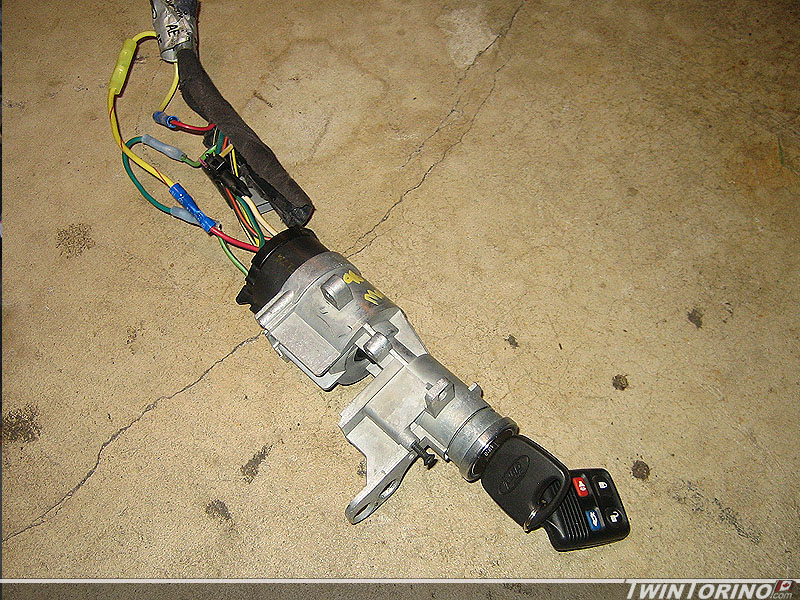

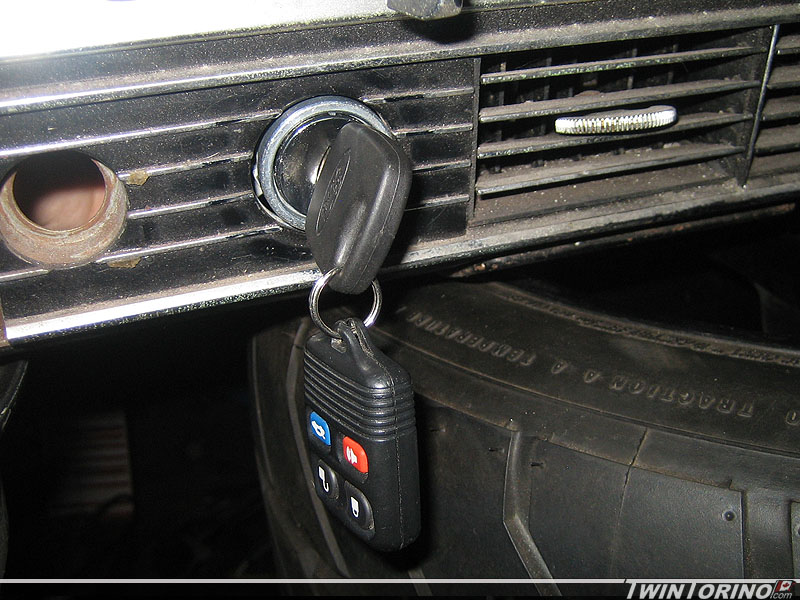

4/29/09 - We have been trying to figure out what the heck to do with my ignition switch on the dash.. as the electrical portion of the projects is quickly approaching. Since the entire car revolves around a 2004 Mustang's electrical system, we needed to use something that would allow me to use a Mustang key in the dash. Only problem is new Mustangs have their keys on the column, which means the mechanisms are totally different as is the electrical. After looking all over the place.. We found several newer Lincolns have a key in the dash. I found this 1998 Lincoln Mark VIII lately which fits quite nicely. Once the original ring is in place, should look close to stock. It fits and looks quite nicely. The goal here is to make it look close to stock. These pics show how the part fits without any mods whatsoever. Just need to modify the part slightly so the stock ring will fit.

03/03/08 - Bring on the parts.

After searching online forums for a while now, we finally scored a set of wiring harness including the dash harness ($200 for all you see here!! - Thanks John) and a guage cluster (Thanks Geoff).  The circuit board on the gauge cluster will eventually become the brains for the Torino's cluster.
